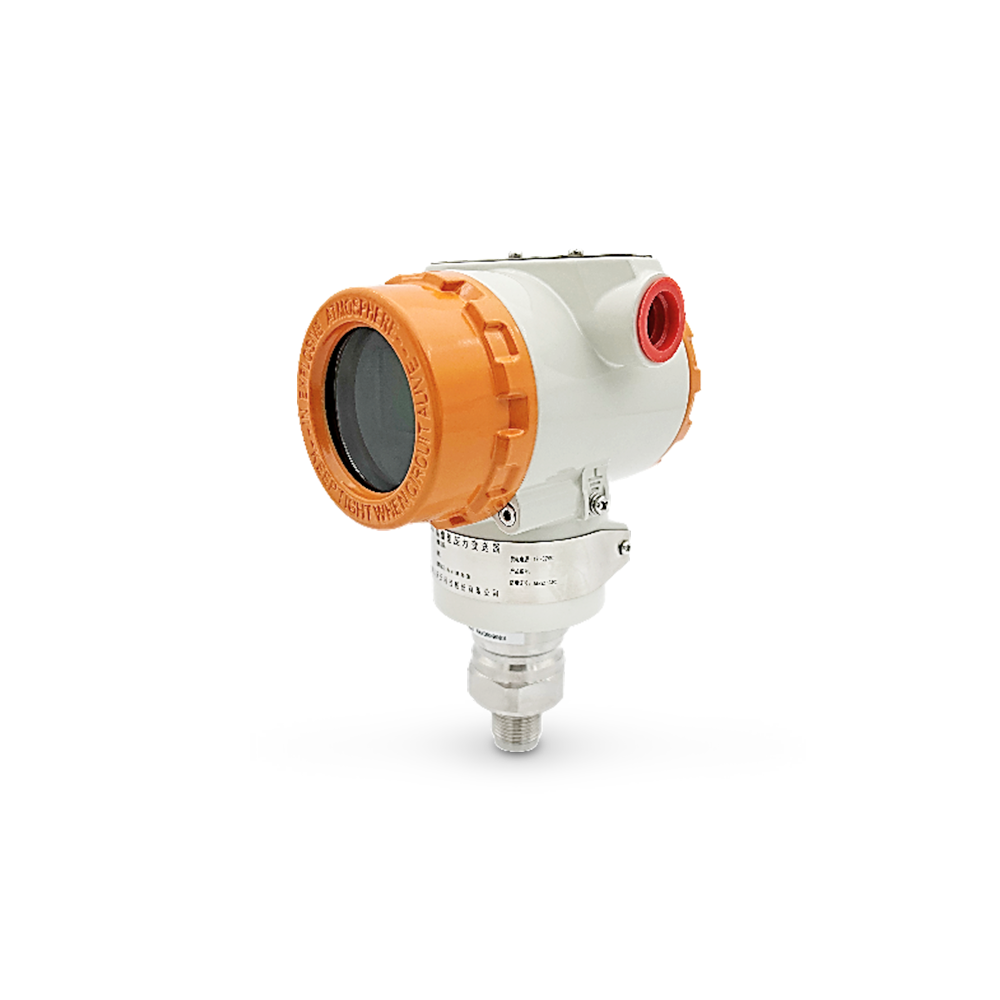

Intelligent Differential Pressure Transmitter PCM3051-DP
Product overview
PCM3051-DP intelligent differential pressure transmitter is a well-developed high performance pressure transmitter based on the international leading technology, adopting the world advanced monocrystalline silicon pressure sensor technology and the patented packaging process. This product adopts the patented double overload protection diaphragm design, with the internal circuit surge protection design, and can accurately measure the gauge pressure, absolute pressure, flow, vacuum degree, liquid level and density.
Features
■ Advanced monocrystalline silicon differential pressure sensor adopted
■ Wide pressure range coverage ±3MPa
■ Double-wire mode, 4～20mA analog output, HART® protocol data communication
■ Intelligent LCD gauge head with backlight
■ With both the remote transmission and the local zero and pressure range adjustment
■ Complete varieties, high accuracy, good stability
■ Isolation ex-proof housing structure, strong resistance to the frequency conversion interference
■ High static pressure, high overload protection
■ Double overload protection diaphragm design
■ Lightning protection circuit design
Applications and industries
■ Process control fields for the industries such as petroleum, chemical industry, metallurgy, electricity, food, papermaking, medicine, machine manufacturing, scientific experiment and military aviation etc.
Product Parameters
Performance parameters | |
Pressure range | ±1kPa; ±6kPa; ±40kPa; ±100kPa; ±250kPa; ±1MPa; ±3MPa |
Pressure reference | Differential pressure |
Power supply | 12VDC～32VDC, 24VDC recommended |
Output | 4～20mA+HART® protocol |
Accuracy | ±1kPa: ±0.2%FS; ±6kPa: ±0.1%FS; Other pressure ranges: ±0.075%FS (Standard pressure ranges, 25±5℃) |
Temperature drift | ±0.5%FS (±1kPa); ±0.3%FS (±6kPa); ±0.25%FS (Other pressure ranges); @-20℃～70℃ |
Ambient temperature | -30℃～80℃; with LCD gauge outfit -30℃～70℃; |
Medium temp. | -40℃～120℃ |
Protection grade | IP67 |
Ex-proof grade | Exd IIC T6 Gb |
Static pressure range | ±1kPa; ±6kPa; ±40kPa static pressure resistance 16MPa; ±100kPa; -100～250kPa static pressure resistance 25MPa; -0.1～1MPa; -0.1～3MPa static pressure resistance 40MPa |
Overpressure limitation | 16MPa |
Long-term stability | ±0.1%FS/year |
Diaphragm material | 316L, Hastelloy C |
Relief valve | 304 |
O-ring | Silicone rubber (in contact with the measurement medium) |
Sealing liquid | Silicon oil |
Splint | 304 |
Housing material | Shell die-casting aluminum alloy, painted with epoxy resin coating |
Electrical connection | M20×1.5, NPT1/2 |
Pressure connection | M20×1.5 with welded pipe, NPT1/4(F), NPT1/2, NPT1/2(F), G1/2 with welded pipe, G1/4, tri-valve set M20×1.5 with welded pipe (304/316 optional), tri-valve set NPT1/4F (304/316 optional) |
Weight | 3.5kg (not including the optional accessory) |
Component diagram |
|
| Hart communication connector diagram
|
|
Production process
Testing Equipment
Certificate
Company profile
